Thông số kỹ thuật
Camera | – Image Sensor: F1.6@1/2.7 inch Progressive Scan CMOS – Shutter Speed: Self-adaptive shutter – Lens: 4mm, view angle: 98°(Diagonal), 82° (Horizontal), 48°(Vertical) – Lens Mount: M12 – Day & Night: IR-cut filter with auto-switching – WDR: Digital WDR – DNR: 3D DNR |
Compression | – Video Compression: H.264/H.265 – Video Bit Rate: Adaptive bit rate |
Image | Max. Resolution: 2304 × 1296 Frame Rate: Self-Adaptive during network transmission |
Network | – Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection – Wi-Fi Pairing: AP paring – Protocol: EZVIZ Cloud Proprietary Protocol – Interface Protocol: EZVIZ Cloud Proprietary Protocol |

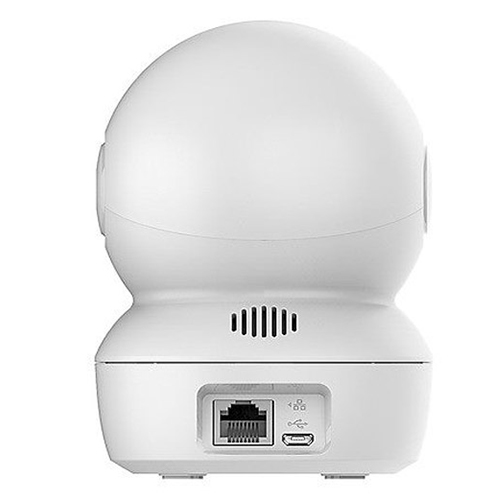

Interface | Storage: Micro SD card slot (Max. 512G) Power: Type-C Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
Wi-Fi | Standard: IEEE802.11b, 802.11g, 802.11n Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: Supports 20MHz Security: WPA/WPA2, WPA-PSK/WPA2-PSK Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n: 72Mbps Output Power(EIRP): 19 dBm Antenna Gain: 1.9 dBi |
General | Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) Power Supply: DC 5V/1A Power Consumption: Max.5W IR Range: Max. 10 m/33ft Dimensions: 88 x 88.2 x 119 mm Bare Weight: 218g |
