Mô tả
| Interface | PON Interface | 1 XPON optical interface Meet Class B+ standard Upstream 1.244Gbps, downstream 2.488Gbps SC-UPC single-mode fiber split ratio:1:128 Transmission distance 20KM | |

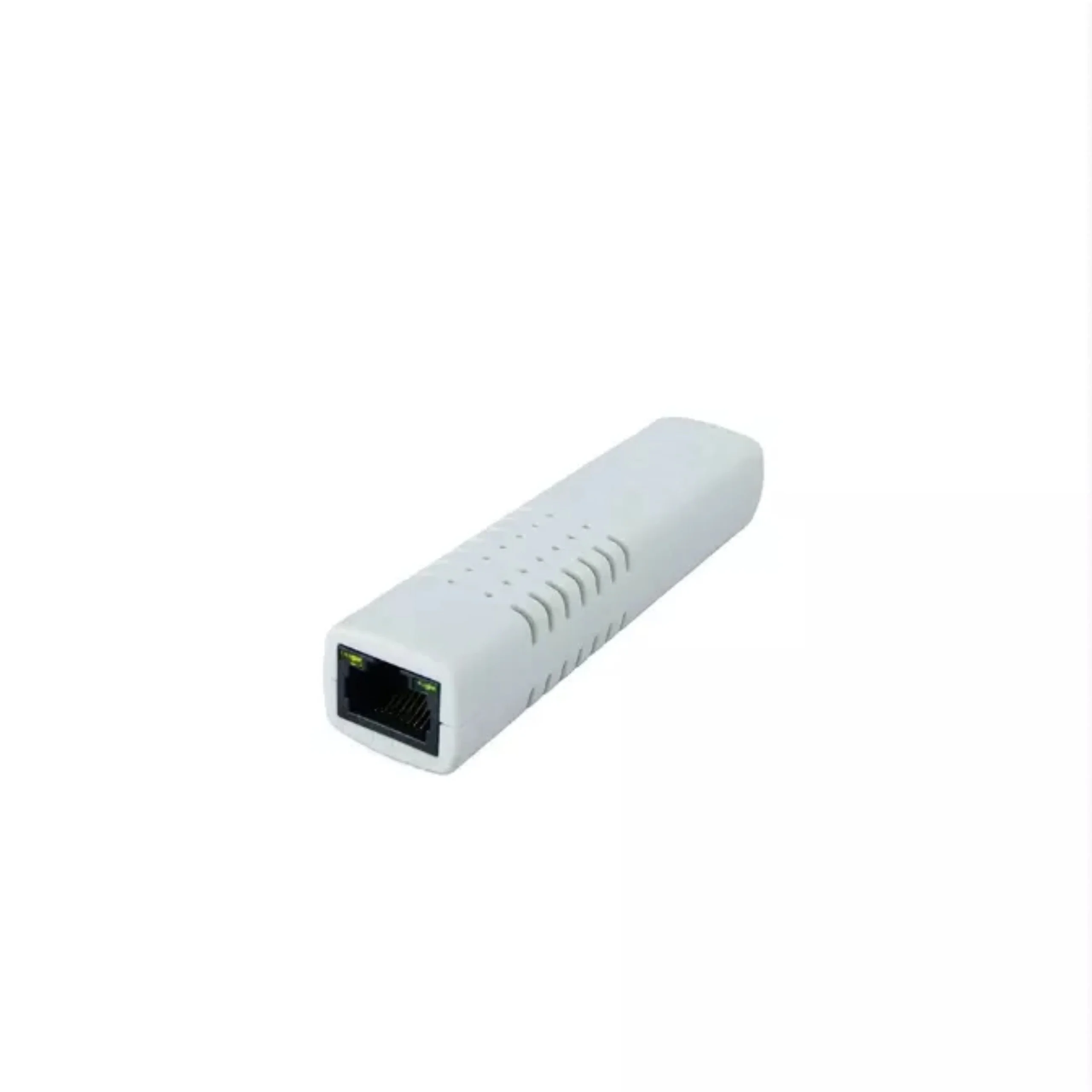

| User Ethernet Interface | 1*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector 100m Distance | ||
| Power Interface | 5V Type-C Power supply | ||
|
Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:0.5～+5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC-UPC Optical Fiber: 9/125um single-mode fiber | |
| Data Transmission Parameter | Packet Loss Ratio:<1*10E-12 latency: <1.5ms | ||
| Gateway | Router mode supports PPPoE / DHCP/ static IP WAN support Router and Bridge mode WAN support Internet LAN supports DHCP and static IP Support NAT and NAPT | ||
| Business Capability | Layer 2 wire speed switching Support VLAN TAG/UNTAG, VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast | ||
| Network Management | Management Mode | Support ITU-T G.984 OMCI, ONU can be remotely managed by OLT Support Remote management through Telnet or http Local management | |
| Management Function | Status monitor Configuration management Alarm management Log management | ||
| Indicator | LED Indicator | PWR: Power up or down LOS: Optical Link Status PON：ONU Registered LINK/ACT: Link Status of Ethernet Interface | |
| Physical Features | Shell | Plastic casing |
| Power | External 5V 1A Type-C Power supply Power consumption: <2W（FD101HC ,<2.3W(FD111HC) | |
| Physical Specifications | Item Dimension：92mm(L) x 21.5mm(W) x 17mm (H) Item weight：0.03kg | |
| Environmental Specifications | Operating temperature: -20 to 70 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) |
