Thông số kỹ thuật

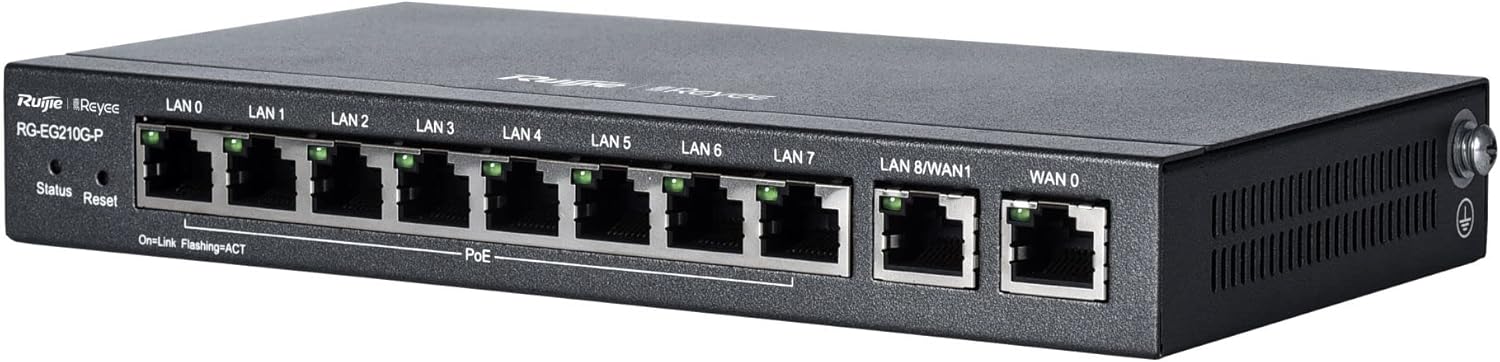

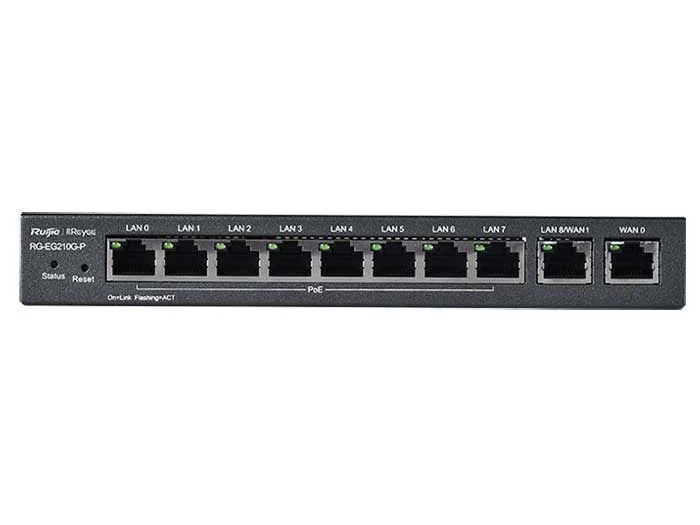

Model | RG-EG210G-P-V3 |
WAN Port | 1×10/100/1000 Base-T |
LAN Port (including switchable port) | 9×10/100/1000 Base-T |
LAN/WAN Switchable Port | 3×10/100/1000 Base-T |
CPU | Dual Core, 880MHz |
RAM | 256MB |
Flash | 32MB |
Recommended Throughput | 600Mbps |
Recommended Concurrent Users | 200 |
Max VLAN | 32 |
No. of Devices Managed in Router Mode | 150 (APs/NBS Switches) + 128 (ES Switches) |
No. of Devices Managed in AC Mode | 500 (APs/NBS Switches) + 128 (ES Switches) |
PoE/PoE+ | Yes |
PoE Power Budget, Max. | 110W |
Captive Portal | Yes |
PPPoE Server | Yes |
Max PPPoE Active Client | 65 |
Smart Flow Control | Yes |
Application Based Speed Limit | Yes |
Key Application Priority | Yes |
User Group Based Speed Limit | Yes |
Behavior Management | Yes |
VPN | PPTP, L2TP, IPsec, OpenVPN |
Max IPSec Active Tunnels | 8 |
Max PPTP Active Tunnels | 8 |
Max L2TP Active Tunnels | 8 |
Max L2TP Over IPSec Active Tunnels | 8 |
Max OpenVPN Active Tunnels | 16 |
Basic Firewall | Yes |
SNMP Service | Yes |
Management | Cloud APP, Cloud Web, Eweb |
Power Consumption | |
Power Supply | DC 54V/2.4A |
Dimensions (W×D×H) | 202 mm × 108 mm × 28 mm |
Weight | 0.522kg |
Operating Temperature | 0°C~40°C |
Installation | Desk-mounted |
Bảo hành: 3 năm.
